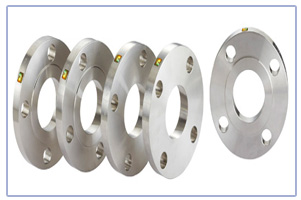

DIN Flanges
The standard of DIN flanges coversDIN 2527 PN6, PN10, PN16, PN25, PN40, PN64, PN100 for Blind Flange, DIN2573 PN6, DIN2576 PN10, DIN2543 PN16, DIN2544 PN25, DIN2545 PN40, DIN2502 PN16, DIN2503 PN25, DIN2503 PN40 for Flat Flange for welding (Slip On), DIN2630 PN1, DIN2630 PN2.5, DIN2631 PN6, DIN2632 PN10, DIN2633 PN16, DIN2634 PN25, DIN2635 PN40, DIN2636 PN64 , DIN2637 PN100, DIN2638 PN160, DIN2628 PN250, DIN2629 PN320, DIN2627 PN400 for Welding Neck Flange, DIN 2641 PN6, DIN2642 PN10 for Lapped (Lapped Joint) Flange, Plain Collar, DIN2652 PN6, DIN2653 PN10, DIN2655 PN25, DIN2656 PN40 for Loose Flange and Ring for Weld (Slip-On Flange and Plain Collar) , DIN2673PN10, DIN2674 PN16, DIN2675 PN25, DIN2676 PN40 for Loose Flange and Ring with Neck for Welding, DIN2558 PN6 for Oval Plain Threaded Flange, DIN2561 PN10, PN16 for Oval Flange with Neck Threaded, DIN2565 PN6, DIN2566 PN10, DIN2566 PN16, DIN2567 PN25, DIN2567 PN40, DIN2568 PN64, DIN2569 PN100 for Threaded Flange with Neck, DIN28115 PN10, PN25 for Long Neck Welding Flange and DIN86029 PN10, DIN86030 PN16 for Hubbed Slip On Flange for Welding for sizes up to DN4000 diameter. Our pressure rating includes PN1, PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, PN250.
Material :
1] Stainless Steel ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409
2] Carbon Steel ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN1.0402, DIN1.0460, DIN1.0619
Dimension :
BS10 Table D, E, F, H, J, K, R, S, T, BS4504 Code 101, 105, 111, 112, 113, BS1042
Size : DN10 ~ DN4000
Pressure : PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100
Type : Weld Neck, Threaded Boss, Slip-On Boss, Socket Weld, Plate Blind, Plate, Orifice Plate
Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Coating : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanize
1] Stainless Steel ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409
2] Carbon Steel ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN1.0402, DIN1.0460, DIN1.0619
Dimension :
BS10 Table D, E, F, H, J, K, R, S, T, BS4504 Code 101, 105, 111, 112, 113, BS1042
Size : DN10 ~ DN4000
Pressure : PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100
Type : Weld Neck, Threaded Boss, Slip-On Boss, Socket Weld, Plate Blind, Plate, Orifice Plate
Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Coating : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanize
