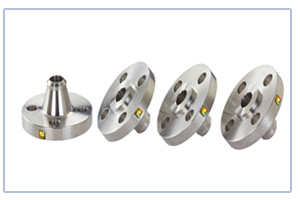

BS Flanges
The standard of BS10 Table D, E, F, H, J, K, R, S, T covers Slip On Boss, Plate Blind, Weld Neck, Plate Slip On, Bossed Screwed / Threaded for sizes up to NB4000. As for BS4504 Section 3.1: 1989 specification, we can offer Slip On Plate (Code 101), Blind / Blank (Code 105), Weld Neck (Code 111), Slip On (Code 112), Screwed / Threaded (Code 113) for size range is DN10 through to DN4000 diameter and class rating includes PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100. Our line also Involves BS1042 for Concentric Square Edge Orifice Plate, Quarter Circle Orifice Plate, Conical Entrance Orifice Plate, Restriction Orifice Plate, Segmental Orifice Plate and Eccentric Orifice Plate.
Material :
1] Stainless Steel ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409
2] Carbon Steel ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN1.0402, DIN1.0460, DIN1.0619
Dimension :
BS10 Table D, E, F, H, J, K, R, S, T, BS4504 Code 101, 105, 111, 112, 113, BS1042
Size : DN10 ~ DN4000
Pressure : PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100
Type : Weld Neck, Threaded Boss, Slip-On Boss, Socket Weld, Plate Blind, Plate, Orifice Plate
Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Coating : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanize
1] Stainless Steel ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409
2] Carbon Steel ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN1.0402, DIN1.0460, DIN1.0619
Dimension :
BS10 Table D, E, F, H, J, K, R, S, T, BS4504 Code 101, 105, 111, 112, 113, BS1042
Size : DN10 ~ DN4000
Pressure : PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100
Type : Weld Neck, Threaded Boss, Slip-On Boss, Socket Weld, Plate Blind, Plate, Orifice Plate
Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Coating : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanize
